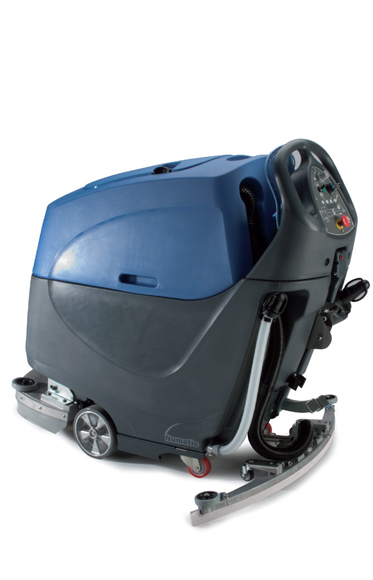

Numatic TTV5565/200T

This TwinTec gets its Vario name from the fact that this one machine can, by a no tools adjustment and simple brush change, be set to operate at either a 55cm or 65cm scrubbing width… Two Machine Choices in One. In the 65cm mode the scrubbing head is automatically expanded to a practical offset operating mode, providing a 100mm head extension to the right hand side. This simple arrangement allows improved edge cleaning especially in aisles with racking or other obstructions. In normal operation the machine delivers a constant 40Kg of brush pressure but to this we have added a heavy duty spot cleaning feature, allowing the operator to select a 50Kg override setting at any time should it be required.

Category:

Description

Brush Motor 2 x 400W Time 3.5 Hrs
Vacuum Motor 600W Speed 4.2 Kph
Power 4 x 12V 100Ahr Run time 45 min per Battery
Deck size 280/330 mm Weight 287 kg
Capacity 85 L Scrub Widths 1052 x 1391 x 1142mm
Water Flow Rate 1/2/3/4L / min Climing Gradient 9 degrees
Nuchem Mix 25:1 50:1 75:1 100:1 Dimensions 550 x 1280 x 1160 mm
Brush Speed 200rpm
